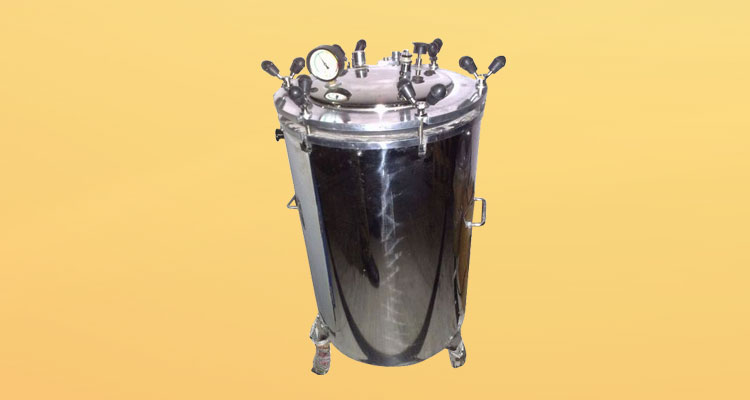

VERTICAL AUTOCLAVE

foto

Double walled, inside made of thick stainless steel and outside mild steel attractive finished. the lead is made of heavy s.s.casting provided with a pressure guage , safety valve and steam relaese cock. Heavy gun metal nuts are fitted to the bolts o keep the position wile opareting. Maximum opareting presssure is 22 P. C. I. (adjustable) working pressure 15 (PSI).

Specification

  • Lifting Arrangement.
  • Perforated Basket.
  • Water Level Indication Arrangement.
  • Thermometer Pocket Arrangement.
  • Dial Thermometer.
  • Timer 0-60 minutes.
  • Pressurestat to cut off current at set pressure.
  • Low water level cut off device.

Technical Specification

Temperature Range 121°C to 125°C
Pressure Range 15 PSI
Control System Controls pressure and temperature along with built in adjustable digital timer sterilization cycle time with auto cut off.

Chamber Size (CMS.)

DIA Height
25 45
30 50
35 55
40 60
45 60
55 75
