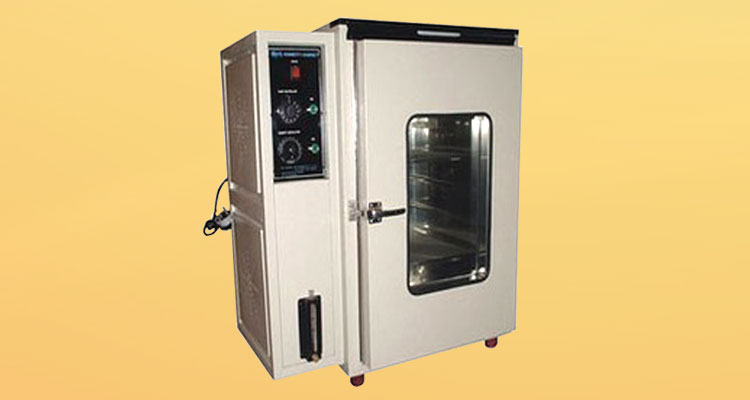

HUMIDITY CHAMBER
Humidity ovens confirming to standard specifications, specially desinged for climatic and durability tests where the Rh value is above freesing point. They are used for drying environment of plant, animal growth, investigation of vapour proofness of packed material, determination of die-electric strength, insulation test of electronic component, mechanical assemblies, paints etc.
Technical Specification
| Temperature Range |
10°C to 60°C |
| Humidity Range |
40%RH to 95%RH |
| Accuracy |
+0.2°C & +2.0% RH |
| Uniformity |
+2.0°C & +3.0% RH |
| Test Suitable for |
25°C & 60% RH, 30°C & 65% RH, 40°C & 75% RH,
30°C & 75% RH |
| Specially designed chambers for Low Humidity conditions such as 25°C & 40% RH, 40°C & 25% RH, 30°C & 35% RH |
| Control System |
PLC or PID Based |
CONSTRUCTION
| Working volume |
3,6,10,12,15,18,20,22, CU.ft. |
| Exterior |
Heavy Guage - Mild Steel. |
| Interior |
Polished Stainless / Anodized Aluminium. |
| Chamber |
Trippled Walled. |
| Mobility |
On Castor Wheel. |
| Insulation |
SuperiorThermofiber board / PUF Insulation. |
| Inner Door |
Full view glass with metal frame. |
| Outer Door |
Of massive construction having seals I against atmospheric infiltration by rubber gasket. |
| Shelves |
Fabricated precisely to give minimum resistance to air circulation |
| Finish |
With attractive and durable powder coated paint in pleasant shed. |
| Circulation |
Forced air circulation for uniform temperature by suction blower with Fan |
| Front panel |
Mains rocker switch, Cooling / Heating rocker switch, Microcontroller Toggle switches for high and low position ofheaters, Fues. |
| illumination |
With the opening of the door |
